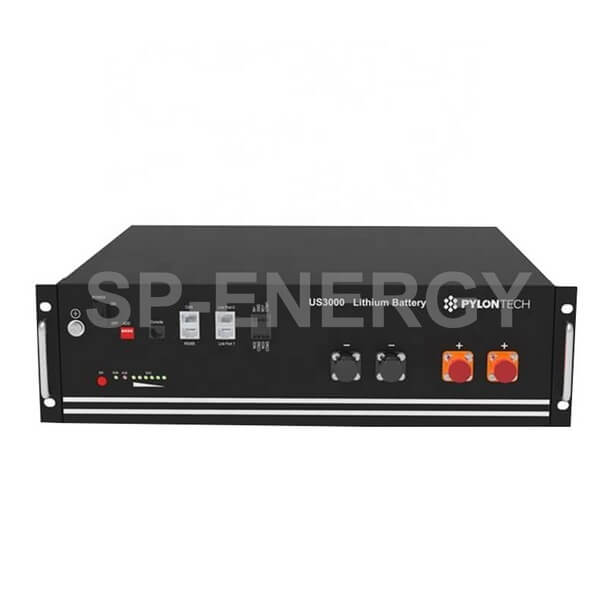

Pylontech lithium Ion 3.5kw US3000B

The 48V Pylontech lithium Ion 3.5kw US3000B gives you maximum storage for any setup and can deliver 6000 cycles @ 80% DOD. The built in BMS on a Pylontech lithium Ion 3.5kw US3000b battery protects the cell from abnormal temperature, current, voltage, SoC and SoH.
PylonTech Model US3000
Nominal Voltage (V) 48V
Nominal Capacity (Wh) 3552Wh
Design life 10+ Years
Contact Solar Panel Energy today!Growatt SPF 5000TL HVM-P 5kVA/5kW 48V Hybrid Inverter

Pylon Tech Lithium batteries are the recommended battery for your solar energy storage. Pylontech batteries developed with their own lithium iron phosphate cell to ensure the highest safety and cycle life. The built in BMS protects the cell from abnormal temperature, current, voltage, SoC and SoH.
With up to a 10 year warranty and giving 6000 cycles @ 80% DOD this battery offers the best value for money.
1. Vertical industry integration ensures more than 6000 cycles with 80% DoD
3. The modular design gives the customers the flexability to expand the storage capacity over time
4. Compatible with most of the available Hybrid inverters
5. Simple buckle fixing minimize the installation time and cost
6. Compact design ideal for compact installations.
7. Safety Cert.TV CE UN38.3 TLC

48V Pylontech lithium Ion 3.5kw US3000B Features
* The whole module is non-toxic, non-polluting and environmentally friendly. Perfect for residential applications
* Cathode material is made from LiFePO4 with high safety performance the result of extremely stable chemistry, they won?t explode or catch fire. Perfect for residential applications
* Battery management system (BMS) has protection functions including over-discharge, over-charge, over-current and high/low temperature.
* The system can automatically manage charge and discharge state and balance current and voltage of each cell
* Flexible configuration, multiple battery modules can be in parallel for expanding capacity and power.
* Adopted self-cooling mode rapidly reduced system noise.
* The module has low self-discharge, up to 6 months without charging, no memory effect, excellent performance of shallow charge and discharge.
* Working temperature range is from -10C to 50C, (Charging 0~50C; discharging -10~50C) with excellent discharge performance and cycle life.
* Small size and light weight.

Specification - PylonTech Lithium Ion 3.5kW US3000B Battery
Basic Parameters: US3000
Nominal Voltage (V): 48V
Nominal Capacity (Wh): 3552Wh
Usable Capacity (Wh): 3200Wh
Dimension (mm): 442*420*132mm
Weight (Kg): 32Kg
Discharge Voltage (V): 45-53.5V
Charge Voltage (V): 52.5-53.5V
Charge / Discharge Current (A): "37 (Recommended) 37 (Recommended)
74 (Max)
100 (Peak@l5s)
Communication Port RS232, RS485, CAN
Single string quantity(pcs) 12
Working Temperature/C 0-50
Shelf Temperature/C' -80
Humidity 5%-85%
Altitude (m) <2000
Design life 10+ Years (25C/77F )
Cycle Life >4500, 25 C
Authentication Level TUV / CE / UN38.3

The 48V Pylontech lithium Ion 3.5kw US3000b is the latest HESS battery system provided by Pylontech with our abundant experience of delivering our product into more than 20000 homes.It? s long life character, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflects the real requirements of end users and strongest technical capability of Pylontech.
