SKU:LP5K.
Brand: Luxpower

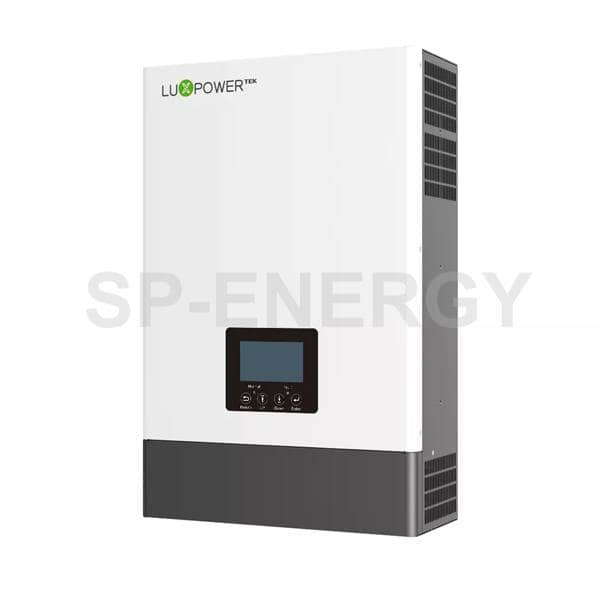

Datasheet _Luxpower 5KW Off-Grid Inverter

Description.
Flexible working modes with settable charge and load power priority.
Support microgrid system with separate generator input terminal, and can remote control generator.
Support Li-ion battery advanced battery management integrated for Lead-acid battery.
With max 9 pcs paralleling function.
Free APP and monitor system.

Output Data: SNA 5000.
Rated Power: 5000W/5000VA.
Parallel Capacity: Yes.
Nominal Output Voltage: 230/240, Split phase 220/110Vac*.
Nominal Output Frequency: 50Hz/60Hz.
Surge Power: 10000VA.
Switch Time: 10ms.
Waveform: Pure sine wave.

Battery Data.

  • Battery Type: Lithium/Lead-Acid.
  • Nominal Voltage: 51.2V/48V.
  • Max.Charge Voltage: 59V.

Solar Charge Data.

  • Max.Recommended PV Power: 6400W
  • MPPT Tracker: 2.
  • Max.PV Open Circuit Voltage: 145Vdc.
  • MPPT Voltage Range: 60-115Vdc.
  • Max.Solar Charge Current: 80A.
  • Max.MPPT Efficiency: >98%.
  • Parallel MPPT Charger: Yes.

AC Charger Data.

  • Nominal Voltage: 230Vac.
  • AC Voltage Range: 110-280Vac.
  • Max.Charge Current: 60A.
  • Frequency Range: 50Hz/60Hz(Auto Sensing).

General Data.
Dimensions(W/H/D): 330/504/135mm.
Weight: 14Kg.
Protection Degree: IP20.
Relatively Humidity:  5%-95%Relative Humidity(No-condensing).
Operating Temperature: 0-50?.
Storage Temperature: -15?-60?.

Interfaces.

  • Display: LCD+LED.
  • Lithium Battery Communication: CAN/RS485.
  • RS485/Dry Connector: YES/YES.
  • Wifi/GPRS: YES/YES.
  • Warranty: 2years.

Output Data:

  • Rated Power: 5000W/5000VA.
  • Parallel Capacity: Yes.
  • Nominal Output Voltage: 230/240, Split phase 220/110Vac*.
  • Nominal Output Frequency: 50Hz/60Hz.
  • Surge Power: 10000VA.
  • Switch Time: 10ms.
  • Waveform: Pure sine wave.

Battery Data.

  • Battery Type: Lithium/Lead-Acid.
  • Nominal Voltage: 51.2V/48V.
  • Max.Charge Voltage: 59V.

Solar Charge Data.

  • Max.Recommended PV Power: 6000W.
  • MPPT Tracker: 2.
  • Max.PV Open Circuit Voltage: 480Vdc.
  • MPPT Voltage Range: 100-385Vdc.
  • Max.Solar Charge Current: 100A.
  • Max.MPPT Efficiency: >98%.
  • Parallel MPPT Charger: Yes.

AC Charger Data.

  • Nominal Voltage: 230Vac.
  • AC Voltage Range: 110-280Vac.
  • Max.Charge Current: 60A.
  • Frequency Range: 50Hz/60Hz(Auto Sensing).

General Data.

  • Dimensions(W/H/D): 330/504/135mm.
  • Weight: 14Kg.
  • Protection Degree: IP20.
  • Relatively Humidity:  5%-95%Relative Humidity(No-condensing).
  • Operating Temperature: 0-50?.
  • Storage Temperature: -15?-60?.

Interfaces.

  • Display: LCD+LED.
  • Lithium Battery Communication: CAN/RS485.
  • RS485/Dry Connector: YES/YES.
  • Wifi/GPRS: YES/YES.
  • Warranty: 2years.
